Thursday, June 26, 2014

SGA_MAX_SIZE & SGA_TARGET / MEMORY_TARGET & MEMORY_MAX_TARGET

As and when Oracle release new version of database, DBA gets new bunch of features.Before Oracle 9i, DBA has to maintain the whole bunch of memory parameters like DB_BLOCK_BUFFERS, SHARED_POOL_SIZE, set of PGA parameters *_AREA_SIZE, LOG_BUFFER and so on. Real complexity before 9i is assigning correct values to *_AREA_SIZE (PGA) parameters as these values is not for whole instance; it is for EACH oracle user process(Oracle user process count can grow upto maximum of PROCESSES settings).





In 9i, Oracle introducted a new parameters called PGA_AGGREGATE_TARGET and WORKAREA_SIZE_POLICY which helps users to assign a single value for the whole instance's PGA and Oracle instance itself will do self mangement for PGA memory. In earlier version, DBA has to assign value for _AREA_SIZE parameters which assign equal size for all sessions.



Oracle 10g has gone to next level from 9i wherein it automates the memory management of whole SGA. Instead of DB_CACHE_SIZE, SHARED_POOL_SIZE, JAVA_POOL_SIZE, LARGE_POOL_SIZE and LOG_BUFFER parameter; user has to manage just SGA_TARGET and SGA_MAX_SIZE




Oracle 11g has gone to the next level from 10g of automatic memory management where in the whole instance can be controlled by initialization parameter MEMORY_TARGET and a maximum memory size initialization parameter MEMORY_MAX_TARGET. Oracle Database then tunes to the target memory size, redistributing memory as needed between the system global area (SGA) and the instance program global area (instance PGA).



SGA_TARGET and SGA_MAX_SIZE

*SGA_MAX_SIZE is the largest amount of memory that will be available for the SGA in the instance and it will be allocated from memory. You do not have to use it all, but it will be potentially wasted if you set it too high and don’t use it. It is not a dynamic parameter. Basically it gives you room for the Oracle instance to grow.

*SGA_TARGET is actual memory in use by the current SGA. This parameter is dynamic and can be increased up to the value of SGA_MAX_SIZE.SGA_MAX_SIZE and SGA_TARGET both are the parameter are used to change the SGA SIZE.SGA_MAX_SIZE sets the maximum value for sga_target.

*SGA_TAGET is 10G feature used to change the sga size dynamically .it specifies the total amount of SGA memory available to an instance. This feature is called Automatic Shared Memory Management. With ASMM, the parameters java_pool_size, shared_pool_size, large_pool_size and db_cache_size are affected.

*The SGA_MAX_SIZE parameter is the max allowable size to resize the SGA Memory area parameters. If the SGA_TARGET is set to some value then the Automatic Shared Memory Management (ASMM) is enabled, the SGA_TARGET value can be adjusted up to the SGA_MAX_SIZE parameter, not more than SGA_MAX_SIZE parameter value.

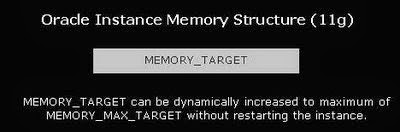

MEMORY_TARGET and MEMORY_MAX_TARGET

you can manage SGA and PGA together rather than managing them separately.

If you set SGA_TARGET, SGA_MAX_SIZE and PGA_AGGREGATE_TARGET to 0 and set MEMORY_TARGET (and optionally MEMORY_MAX_TARGET) to non zero value, Oracle will manage both SGA components and PGA together within the limit specified by you.

If MEMORY_TARGET is set to 1024MB, Oracle will manage SGA and PGA components within itself.

If MEMORY_TARGET is set to non zero value:

*SGA_TARGET, SGA_MAX_SIZE and PGA_AGGREGATE_TARGET are set to 0, 60% of memory mentioned in MEMORY_TARGET is allocated to SGA and rest 40% is kept for PGA.
*If SGA_TARGET and PGA_AGGREGATE_TARGET are set, they will be considered the minimum values for the sizes of SGA and the PGA respectively (But sum of SGA_TARGET and PGA_AGGREGATE_TARGET should be less than or equal to MEMORY_TARGET).
*SGA_TARGET is set to non zero value and PGA_AGGREGATE_TARGET is not set. Still these values will be autotuned and PGA_AGGREGATE_TARGET will be initialized with value of (MEMORY_TARGET-SGA_TARGET).
*PGA_AGGREGATE_TARGET is set and SGA_TARGET is not set. Still both parameters will be autotunes. SGA_TARGET will be initialized to a value of (MEMORY_TARGET-PGA_AGGREGATE_TARGET).

Wednesday, June 25, 2014

ORA-00445: background process "W001" did not start after 120 seconds

Cause

* Recent linux kernels have a feature called Address Space Layout Randomization (ASLR).
* ASLR  is a feature that is activated by default on some of the newer linux distributions.
* It is designed to load shared memory objects in random addresses.
* In Oracle, multiple processes map a shared memory object at the same address across the processes.
* With ASLR turned on Oracle cannot guarantee the availability of this shared memory address.

This conflict in the address space means that a process trying to attach a shared memory object to a specific address may not be able to do so, resulting in a failure in shmat subroutine.

However, on subsequent retry (using a new process) the shared memory attachment may work. The result is a “random” set of failures in the alert log.

Solution

* It should be noted that this problem has only been positively diagnosed in Redhat 5 and Oracle 11.2.0.2.
* It is also likely, as per unpublished BUG:8527473,  that this issue will reproduce running on Generic Linux platforms
   running any Oracle 11.2.0.x. or 12.1.0.x  on Redhat/OEL kernels which have ASLR.
* This issue has been seen in both Single Instance and RAC environments.

You can verify whether ASLR is being used as follows:

 # /sbin/sysctl -a | grep randomize

kernel.randomize_va_space = 1

If the parameter is set to any value other than 0 then ASLR is in use. On Redhat 5 to permanently disable ASLR. Add/modify this parameter in /etc/sysctl.conf

-       kernel.randomize_va_space=0
-       kernel.exec-shield=0

You need to reboot for kernel.exec-shield parameter to take effect. Note that both kernel parameters are required for ASLR to be switched off.

There may be other reasons for a process failing to start, however, by switching ASLR off, you can quickly discount ASLR being the problem. More and more issues are being identified when ASLR is in operation.

Oracle Transaction

Now that we have looked at the Oracle architecture, we will look at a sample transaction in detail to see how everything works together. This sample transaction is shown in Figure



The following covers a basic transaction inside Oracle:

1. A user logs starts SQL*Plus and enters a username, password, and database name (referred to as a connect string). On the client side, Oracle finds the database name in tnsnames.ora. Using the specified IP address, port number, and connect string, the user process establishes a connection with the database server.

2. The Oracle listener process on the database server receives the user process connection. It looks for the databases in listener.ora and routes the user process to the specified database. At this point we are assuming a dedicated (not MTS) connection.

3. A new server process inside the database is spawned and establishes contact with the user process. At this stage the listener process is no longer involved. After password authentication, the user process is connected.

4. The user process issues a SQL statement to update a row of data in a table. This statement goes across the network to the dedicated server process.

5. Information inside the PGA for the server process is updated to reflect the new SQL statement.

6. The server process runs a quick hash algorithm on the statement and receives a value. It then scans the shared SQL area for any statements with the same hash value. For this example, it does not find a matching hash value.

7. The server process scans and finds a free area within the shared SQL area to work. It parses the user’s SQL statement and checks the syntax. Oracle verifies that the table exists in the data dictionary and verifies the user’s object-level permissions on the table being modified. Then it looks at the statement and the stored statistics it has about the table and any indexes to develop an execution plan. Oracle then issues an exclusive lock on the row of data and attempts to execute the statement. Oracle reads the current System Change Number (SCN) for the system and uses this value to maintain consistency
throughout the transaction.

8. The server process scans the database buffer cache to see if the data block is already cached. In our example the server process does not find a copy of the block in the buffer cache, so it must read in a copy.

9. A scan of the database buffer cache finds a consistent data block buffer that can be reused. The server process follows the prescribed execution plan and retrieves the block containing the row to be modified. It overwrites the buffer cache buffer with the new block. The block is marked as being at the MRU end of the Least Recently Used list. In Oracle 8i it is believed that a block will be placed in the middle of the LRU list using Mid Point Insertion, but there isn’t enough public information to confirm this.

10. A slot in the rollback segment header is briefly acquired, and space in a rollback segment extent is found. The block of this rollback segment extent is moved to the database buffer cache in a similar manner as in step 8. An UPDATE statement to undo the user’s UPDATE statement is generated and placed in the rollback segment. Undo for the update to the row’s index is also generated and placed in the rollback segment.

11. The row of data is actually modified in the database buffer cache memory. Index and rollback
segment buffers are also inside the buffer cache.

12. The server process finds space and writes the change to the redo log buffer. This includes both the modified data and the contents of the rollback segment.

13. At this stage the user who issued the statement can see the change with a SELECT statement. Any other user issuing a SELECT statement will see the row as it was before step 4. The block containing the modified row is now considered dirty because it has been modified but not yet committed. If another user attempts to issue a statement to modify the same row, that session will seem to hang because it is waiting on the first user to release the row exclusive lock acquired in step 6.

14. The user types the COMMIT command at the SQL*Plus prompt and presses Enter. This is considered an explicit commit and is a signal to Oracle to make permanent any changes made by the user. What if the user types the word EXIT at the SQL*Plus prompt and presses Enter? This is an implicit commit because the user is existing normally. The changes to the data will be made permanent.

15. The Oracle server process receives the instruction to commit the row update. A unique System Change Number is assigned to the transaction in the rollback segment transaction table and in the redo log buffer. LGWR writes everything in the redo log buffer to the active online redo log file(s). Once the data is written to the redo log file(s) and Unix has confirmed the write to be successful, Oracle considers the transaction complete and the change permanent. If a database crash were to occur, the changes to the data would still be recovered.

16. DBWR will eventually write every dirty block in the buffer cache to disk, but that may not necessarily happen yet. In fact, the modified blocks may already have been written to disk. This will occur at the normal time when DBWR writes. A user commit does not force DBWR to write. The modified blocks may still reside in the database buffer cache, but the transaction is considered complete by Oracle because LGWR successfully wrote to the online redo log.

17. The row-level lock held by the user is released. The user receives a message stating the commit was successful.

18. The other statement (in step 13) waiting to update the row will now receive an exclusive row lock, and the steps starting at step 6 may occur.

19. The first user issues an EXIT statement in SQL*Plus. This causes any new DML statements to be committed. Next the Oracle server process and the corresponding user process terminate. Memory
resources and any locks held in the user’s PGA/UGA are released back to the system.

Note that this was discussed only at the Oracle level and that we did not yet mention how the memory and disk are accessed at the Unix level. Relatively simple transactions such as this occur very frequently and involve many steps. This should underscore the need for a highly tuned system because any inefficiency could result in noticeable performance problems.


HugePages for Oracle on Linux

From Oracle documentation, here are some major advantages of using HugePages.

* RAM is managed in 4k pages in 64 bit Linux.  When memory sizes were limited, and systems with more than 16G RAM were rare, this was not a problem. However, as systems get more memory, the number of memory pages increased and become less manageable. Hugepages make managing the large amounts of memory available in modern servers much less CPU intensive.

* HugePages is crucial for faster Oracle database performance on Linux if you have a large RAM and SGA.

* HugePages are not swappable. Therefore there is no page-in/page-out mechanism overhead. HugePages are universally regarded as pinned.

Thus Oracle SGA memory must either be all hugepages are no hugepages. If you allocate hugepages for Oracle, and don’t allocate enough for the entire SGA, Oracle will not use any hugepage memory. If there is not enough non-hugepage memory, your database will not start.  Finally, enabling hugepages will require a server restart, so if you do not have the ability to restart your server, do not attempt to enable hugepages.

Implementing HugePages has become common practice with Oracle 11g and is fairly well documented in MOS Note 361468.1.

The basics steps are as follows:

* Set the memlock ulimit for the oracle user.
* Disable Automatic Memory Managment if necesary as it is incompatible with HugePages.
* Run the Oracle supplied hugepages_settings.sh script to calculate the recommended value for the vm.nr_hugepages kernel parameter.
* Edit /etc/sysctl.conf with the vm.nr_hugepages with the recommeneded setting.
* Reboot the server

If you have Oracle Database 11g or later, the default database created uses the Automatic Memory Management (AMM) feature which is incompatible with HugePages. Disable AMM before proceeding. To disable, set the initialization parameters MEMORY_TARGET and MEMORY_MAX_TARGET to 0 (zero)

The database we were working with was 10g. As it turns out, there are some differences between Oracle 10 and 11, mainly that there is no HugePage logging in the alert log on version 10. See MOS Note: 1392543.1

Another noticable difference is the fact that the initialization parameter use_large_pages was not added until version 11.2.0.2. In the event that you have multiple databases on one machine, this parameter allows you to control which databases use HugePages. In addition, it can prevent a database from starting up if not enough HugePages can be allocated at instance startup. See “use_large_pages to enable HugePages in 11.2 [ID 1392497.1]” for more detailed info on the values for this parameter.

There are both Oracle database settings and Linux OS settings that must be adjusted in order to enable hugepages.  The Linux and oracle settings of concern are below:

Linux OS settings:

/etc/sysctl.conf:
-       vm.nr_hugepages
-       kernel.shmmax
-       kernel.shmall

/etc/security/limits.conf:
 -     oracle soft memlock
 -     oracle hard memlock

Oracle Database spfile/init.ora:

SGA_TARGET
SGA_MAX_SIZE
MEMORY_TARGET
MEMORY_MAX_TARGET
USE_LARGE_PAGES

First, calculate the Linux OS settings.

Kernel.shmmax should be set to the size of the largest SGA_TARGET on the server plus 1G, to account for other processes.  For a single instance with 180G RAM, that would be 181G.
Kernel.shmall should be set to the sum of the SGA_TARGET values divided by the pagesize.  Use ‘getconf pagesize’ command to get the page size.  Units are bytes.  The standard pagesize on Linux x86_64 is 4096, or 4k.

Oracle soft memlock and oracle hard memlock should be set to slightly less than the total memory on the server, I chose 230G.  Units are kbytes, so the number is 230000000.  This is the total amount of memory Oracle is allowed to lock.

Now for the hugepage setting itself: vm.nr_hugepages is the total number of hugepages to be allocated on the system.  The number of hugepages required can be determined by finding the maximum amount of SGA memory expected to be used by the system (the SGA_MAX_SIZE value normally, or the sum of them on a server with multiple instances) and dividing it by the size of the hugepages, 2048k, or 2M on Linux. To account for Oracle process overhead, add five more hugepages. So, if we want to allow 180G of hugepages, we would use this equation: (180*1024*1024/2048)+5.  This gives us 92165 hugepages for 180G. Note: I took a shortcut in this calculation, by using memory in MEG rather than the full page size. To calculate the number in the way I initial described, the equation would be: (180*1024*1024*1024)/(2048*1024).

In order to allow the Oracle database to use up to 180G for the SGA_TARGET/SGA_MAX_SIZE, below are the settings we would use for the OS:

/etc/security/limits.conf

oracle soft memlock 230000000
oracle hard memlock 230000000

/etc/sysctl.conf

vm.nr_hugepages =  92165
kernel.shmmax  = 193273528320+1g = 194347270144
kernel.shmall  = 47448064

In the Oracle database there is a new setting in 11gR2. This is USE_LARGE_PAGES, with possible values of ‘true’, ‘only’, and ‘false’.  True is the default and current behavior, ‘False’ means never use hugepages, use only small pages.  ‘Only’ forces the database to use hugepages.  If insufficient pages are available the instance will not start. Regardless of this setting, it must use either all hugepages or all smallpages.  According to some blogs, using this setting is what allows the MEMORY_MAX_TARGET and MEMORY_TARGET to be used with hugepages.  As I noted above, I have not verified this with a Metalink note as yet.

Next, set SGA_TARGET and SGA_MAX_SIZE to the desired size. I generally recommend setting both to the same size. Oracle recommends explicitly setting the MEMORY_TARGET and MEMORY_MAX_TARGET to 0 when enabling hugepages. So these are the values in the spfile that we change:

USE_LARGE_PAGES=only
SGA_TARGET=180G
SGA_MAX_SIZE=180G
MEMORY_MAX_TARGET=0
MEMORY_TARGET=0

In order to verify that hugepages are being used, run this command: ‘cat /proc/meminfo | grep Huge’.

It will show HugePages_Total, HugePages_Free, and HugePages_Rsvd. The HugePages_Rsvd value is the number of hugepages that are in use.

Note that this example uses Linux hugepage size of 2M (2048k).  On Itanium systems the hugepage size is 256M.

These instructions should allow you successfully implement huge pages in Linux.  Note that everything would be the same for Oracle 10gR2, with the exception that the USE_LARGE_PAGES parameter is unavailable.

References:





Tuesday, June 24, 2014

Data Guard Protection Modes

Maximum Protection

1. No data loss
2. Redo has to be written to both Primary redo logs and standby redo logs (of atleast one standby database) before transaction commits
3. Primary database shuts down if redo stream is prevented to write at standby redo logs of atleast one standby database
4. Configure standby redo logs on at least one standby database
5. Attribute to use in log_archive_dest_n : LGWR, SYNC and AFFIRM for at least one standby DB

Maximum Availability

1. Redo has to be written to both Primary redo logs and standby redo logs (of atleast one standby database) before transaction commits
2. If redo stream is prevented to write at standby redo logs of at least one standby database then Primary database does not shuts down unlike Maximum protection mode, instead primary database operates in Maximum Performance mode.
4. Primary database automatically resumes to operate in maximum availability mode once all gaps are resolved.
5. Configure standby redo logs on at least one standby database
6. Attribute to use in log_archive_dest_n : LGWR, SYNC and AFFIRM for at least one standby DB

Maximum Performance

1. Default mode
2. Asynchronous redo data is written to at least one standby database
3. Attributes on log_archive_dest_n to set either LGWR and ASYNC or ARCH for standby DB destination

LGWR SYNC and ASYNC in Oracle DataGuard

Oracle Data Guard redo log transport offers synchronous log transport mode (LogXptMode = 'SYNC') or asynchronous log transport mode (LogXptMode = 'ASYNC').  The difference is all about when the COMMIT happens .

LogXptMode = ('SYNC'):  As the name implies, SYNC mode synchronizes the primary with the standby database and all DML on the primary server will NOT be committed until the logs have been successfully transported to the standby servers.  The synchronous log transport mode is required for the Maximum Protection and Maximum Availability data protection modes.

LogXptMode = ('ASYNC'): Conversely, asynchronous mode (ASYNC) allows updates (DML) to be committed on the primary server before the log file arrives on the standby servers.  The asynchronous log transport mode is required for the Maximum Performance data protection mode.

As you know, for every committed transaction at the primary database, Oracle generates and writes records to a local online log file.

If you choose REAL TIME redo apply, Data Guard transport services transmit the redo directly from the primary database log buffer to the standby database(s) where it is written to a standby redo log file locally.

This is highly efficient, it bypasses all IO generating processes. All redo travel in memory structures of database.

This method offers two types of replication methods: synchronous and asynchronous.

SYNCHRONOUS REDO TRANSPORT (SYNC) STORY (ZERO DATA LOSS)

Before 11GR2 :

1. PRIMARY DATABASE generates some redo data.

2. It waits the local log file write to be completed before transmitting redo from memory to the remote standby.

3. Then, it sends REDO to STANDBY DATABASE.

4. PRIMARY DATABASE waits until STANDBY DATABASE receives that redo data and even writes to STANDBY REDO LOG FILES.

5. If these conditions are satisfied, PRIMARY DATABASE acknowledges successful commit to application.

6. This provides guarantee of zero data loss in case of any failure happens.

With 11GR2 :

1. PRIMARY DATABASE generates some redo data (again)

2. PRIMARY DATABASE transmits redo to the remote standby in parallel with the local online log file write at the primary database.

ASYNCHRONOUS REDO TRANSPORT (ASYNC) STORY (MAXIMUM PERFORMANCE)

1. PRIMARY DATABASE generates some redo data.

2. PRIMARY DATABASE acknowledges successful commit to application without waiting STANDBY DATABASE's acknowledgment.

3. PRIMARY DATABASE ships directly from the primary log buffer (instead of from disk) to STANDBY DATABASE.

4. PRIMARY DATABASE's performance is at maximum, but there is no guarantee that a small amount of data loss.

You can use these options at PRIMARY DATABASE's configuration :

LOG_ARCHIVE_DEST_2='SERVICE=MYSTANDBY LGWR ASYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=MYUNIQUENAME'

So, DATA GUARD doesn't need to wait local log files to be written on anymore. This eliminates the  round-trip time required for I/O to complete at the standby database.



Archivelog Mode vs Noarchivelog Mode

NOARCHIVELOG mode:

1.  The Redo Log Files are overwritten each time a log switch occurs, but the files are never archived.
2.  When a Redo Log File (group) becomes inactive it is available for reuse by LGWR.
3.  This mode protects a database from instance failure, but NOT from media failure.
4.  In the event of media failure, database recovery can only be accomplished to the last full backup of the database
5.  You cannot perform tablespace backups in NOARCHIVELOG mode.
6.  When the last redo log is written, the database begins overwriting the first redo log again
7.  Here we can only go for cold backup.Generally in this mode complete recovery is not possible

e.g., Full Database Backup - NOARCHIVELOG Mode

SQL> BACKUP DATABASE;

ARCHIVELOG mode –

1.  Full On-line Redo Log Files are written by the ARCn process to specified archive locations, either disk or tape – you can create more than one archiver process to improve performance.

2. A database control file tracks which Redo Log File groups are available for reuse (those that have been archived).

3.  The DBA can use the last full backup and the Archived Log Files to recover the database.

4.  A Redo Log File that has not been archived cannot be reused until the file is archived – if the database stops awaiting archiving to complete, add an additional Redo Log Group.

5.  When you are working with RMAN, ensure that the database runs in ARCHIVELOG mode.

6.  It requires additional disk space to store archived log files.

7.  It is important that the directory containing the archived log files doesn’t become full because if it does, the ARCH thread wouldn’t be able to archive the redo log files. The DBA has to continuously monitor the used-space percentage in the archive directory.

8.  In archivelog mode cold and hot backups are possible. We can recover our database upto the last point of failure.

e.g., Full Database Backup - ARCHIVELOG Mode

SQL> BACKUP DATABASE PLUS ARCHIVELOG;




Monday, June 23, 2014

How to rename a database in Oracle

Steps to change DBID and DBNAME:

Source database name is DCPROC and we will convert it to DRPROC.

Step 1. Mount the database after a clean shutdown:

[oracle@netmindtwcint ~]$ export ORACLE_SID=DCPROC

[oracle@netmindtwcint ~]$ sqlplus sys as sysdba

SQL> shutdown immediate;

SQL> startup mount;

Step 2. Invoke the DBNEWID utility (nid) specifying the new DBNAME from the command line using a user with SYSDBA privilege:

1. TO CHANGE ONLY DB NAME

% nid TARGET=SYS DBNAME=LSAUDI SETNAME=YES

2.  TO CHANGE ONLY DBID

% nid TARGET=SYS

[oracle@mumvfspocsmdb log]$ nid TARGET=SYS DBNAME=DRPROC

DBNEWID: Release 11.2.0.3.0 - Production on Fri Oct 4 14:41:21 2013

Copyright (c) 1982, 2011, Oracle and/or its affiliates.  All rights reserved.

Password:
Connected to database DCPROC (DBID=2392917474)

Connected to server version 11.2.0

Control Files in database:
    /oracle_backup/oracle/ora_control1.ctl
    /oracle_backup/oracle/flash_recovery_area/control02.ctl

Change database ID and database name DCPROC to DRPROC? (Y/[N]) => y

Proceeding with operation
Changing database ID from 2392917474 to 1776249945
Changing database name from DCPROC to DRPROC
    Control File /oracle_backup/oracle/ora_control1.ctl - modified
    Control File /oracle_backup/oracle/flash_recovery_area/control02.ctl - modified
    Datafile /oracle_backup/oracle/system01.db - dbid changed, wrote new name
    Datafile /oracle_backup/oracle/sysaux01.db - dbid changed, wrote new name
    Datafile /oracle_backup/oracle/undotbs01.db - dbid changed, wrote new name
    Datafile /oracle_backup/oracle/saudidata1.db - dbid changed, wrote new name
    Datafile /oracle_backup/oracle/temp01.db - dbid changed, wrote new name
    Control File /oracle_backup/oracle/ora_control1.ctl - dbid changed, wrote new name
    Control File /oracle_backup/oracle/flash_recovery_area/control02.ctl - dbid changed, wrote new name
    Instance shut down

Database name changed to DRPROC.
Modify parameter file and generate a new password file before restarting.
Database ID for database DRPROC changed to 1776249945.
All previous backups and archived redo logs for this database are unusable.
Database is not aware of previous backups and archived logs in Recovery Area.
Database has been shutdown, open database with RESETLOGS option.
Succesfully changed database name and ID.
DBNEWID - Completed succesfully.

Step 3  Create a new password file:

[oracle@netmindtwcint dbs]$ orapwd file=$ORACLE_HOME/dbs/orapwDRPROC password=Oracle entries=10

Step 4 Rename the initFILE to match the new DBNAME.

Make new init.ora file from existing init.ora file and change db_name parameter from DCPROC to DRPROC manually

change *.db_name='DCPROC' to *.db_name='DRPROC' in initDRPROC.ora file.

[oracle@netmindtwcint dbs]$ cp initDCPROC.ora initDRPROC.ora

SQL> alter system set db_name='DRPROC' scope=memory;

OR

Rename the SPFILE to match the new DBNAME.

Make new spfileDRPROC.ora file and from existing spfileDCPROC.ora file and change db_name parameter from DCPROC to DRPROC commandly

[oracle@netmindtwcint dbs]$ cp spfileDCPROC.ora spfileDRPROC.ora;

SQL> alter system set db_name='DRPROC' scope=spfile

Step 5 Configure listener & tnsnames files

Change the $ORACLE_HOME/network/admin/tnsnames.ora file wherever it has the old db name.

If there is a static registration of the database in the listener.ora file then change the database name in the following file $ORACLE_HOME/network/admin/listener.ora.

Step 6. Open the database with Resetlogs option:

[oracle@netmindtwcint dbs]$ sqlplus sys as sysdba

SQL*Plus: Release 11.2.0.2.0 Production on Fri Apr 27 15:00:03 2012

Copyright (c) 1982, 2010, Oracle.  All rights reserved.

Enter password:
Connected to an idle instance.

SQL> startup mount
ORACLE instance started.

Total System Global Area  535662592 bytes
Fixed Size                  1345376 bytes
Variable Size             167774368 bytes
Database Buffers          360710144 bytes
Redo Buffers                5832704 bytes
Database mounted.

SQL> alter database open resetlogs;

Database altered.
